120 LED 3535 IP20 12V Strip Light
Technical Information 12V 3535 LED
System Wattage (at rated Voltage) |
Total Lumens |
Efficacy )Lm/W) |
Beam Angle |
Total Voltage Drop of 5m Strip |
Operating Temp Range |
Rated Life |
|---|---|---|---|---|---|---|
50W ±10% |
NA |
NA |
120° |
≤2V DC |
-10°C TO +45°C |
50000BH |
Mechanical Information 12V 3535 LED

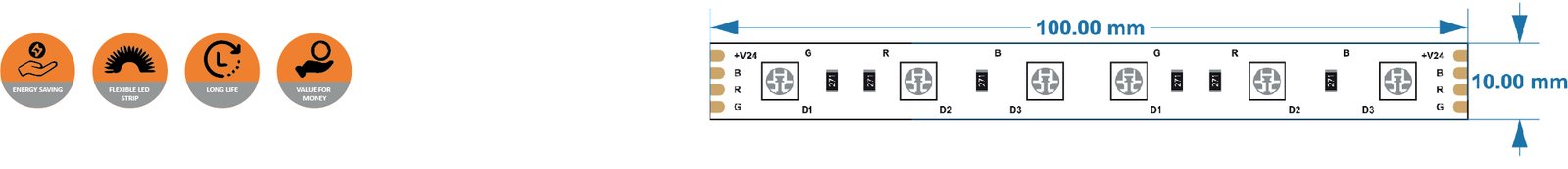

Dimenstion (L X W X H)mm |
Fixing Method |
No of LEDs |
No. Of LEDs In Single String |
No. Of Resistors |
No. Of Resistors in Single String |
Series/Parellel Combination |
|---|---|---|---|---|---|---|
5000 X 10 X 2mm |
3M Tape |
600 (120led/mtr) |
3 |
300 |
3 |
3S 100P |
FEATURES :
- Low Voltage and safe to use.
- Create perfect ambience.
- Excellent lumen efficacy.
- High Energty savings.
- 5MTR LED strip which can be cut at scissor mark lines.
- Long operational life and energy saving.
MOUNTING
Adhesive Backing
APPLICATIONS
Accent Lighting, Covers, Ledges, Shelves,
Aluminium Profile, Facade Lights, Festive Decore
3 Year
WARRANTY
300 LED 2835 IP20 12V Strip Light
Technical Information 24V 3535 LED
System Wattage (at rated Voltage) |
Total Lumens |
Efficacy )Lm/W) |
Beam Angle |
Total Voltage Drop of 5m Strip |
Operating Temp Range |
Rated Life |
|---|---|---|---|---|---|---|
50W ±10% |
NA |
NA |
120° |
≤2.5V DC |
-10°C TO +45°C |
50000BH |
Mechanical Information 24V 3535 LED
Dimenstion (L X W X H)mm |
Fixing Method |
No of LEDs |
No. Of LEDs In Single String |
No. Of Resistors |
No. Of Resistors in Single String |
Series/Parellel Combination |
|---|---|---|---|---|---|---|
5000 X 10 X 2mm |
3M Tape |
600 (120led/mtr) |
6 |
600 |
6 |
6S 50P |
